What is troposcatter communication?


When traditional communication infrastructure fails, troposcatter communication becomes a crucial technology for maintaining reliable communication in remote and disaster-prone areas.

In this blog, you’ll learn more about what troposcatter communication is, how it works, various use cases, and where Trenton’s solutions come into play.

What is troposcatter communication?

Troposcatter, also known as tropospheric scatter, is a form of radio communication that uses the scattering of radio waves in the Earth’s troposphere (the lowest layer of the atmosphere) to establish communication over long distances.

In troposcatter communication, high-frequency radio waves are transmitted from one point to another by reflecting off of the irregularities and variations in the density of the troposphere, such as atmospheric turbulence, moisture, and temperature gradients.

This scattering effect allows the radio waves to propagate beyond the horizon and over distances that would normally be obstructed by the curvature of the Earth and other obstacles.

Troposcatter communication can be used for military and civilian applications, such as long-range communication for remote areas, communication in disaster zones where other forms of communication are not possible, and for surveillance and intelligence gathering.

However, troposcatter communication has some limitations, such as the need for high power and large antenna systems, and susceptibility to interference and fading due to atmospheric conditions.

How does troposcatter communication work?

The troposphere is the lowermost layer of the Earth’s atmosphere, extending up to a height of about 7-20 km, depending on the location and weather conditions.

Troposcatter communication works by using a high-frequency radio signal to create a “scatter field” in the troposphere. This field consists of millions of small “scattering centers,” such as water droplets, dust particles, and atmospheric gases, that reflect and scatter the radio signal in all directions.

The radio signal is transmitted from one point to another by directing the signal towards the troposphere at a specific angle. The signal is then scattered off the scattering centers in the troposphere and received by a receiver located at the destination point.

To ensure reliable communication, the troposcatter signal must be transmitted at a high power and a specific frequency range (usually between 1 and 10 GHz). The signal must also be transmitted at a specific angle, typically between 2 and 5 degrees above the horizon, to ensure that it is scattered effectively.

What are the types of troposcatter applications, and how do they differ?

There are two primary types of troposcatter applications: point-to-point and point-to-multipoint.

  1. Point-to-Point Troposcatter: Point-to-point troposcatter is a communication system that establishes a direct link between two fixed points, such as two military bases, over a distance of up to 300 miles. This type of system requires a high degree of accuracy in the antenna alignment, and it typically operates at a frequency range of 1 to 20 GHz. The main advantage of point-to-point troposcatter is that it can transmit data at high rates over long distances without relying on satellite technology.
  2. Point-to-Multipoint Troposcatter: Point-to-multipoint troposcatter is a communication system that enables one transmitter to communicate with multiple receivers spread over a large geographical area. This type of system operates at a lower frequency range of 200 to 400 MHz and can cover distances of up to 500 miles. Point-to-multipoint troposcatter systems are commonly used in remote regions where traditional communication infrastructure, such as telephone lines, cellular towers, and satellite links, are not available or not practical.

What are the types of troposcatter applications?

Source: Raytheon Intelligence and Space

Troposcatter Communication Use Cases

Military Use Cases

Battlefield Communication

In military operations, effective communication is crucial for coordination, command, and control. However, traditional line-of-sight communication methods like radios and satellites face challenges in complex terrain or urban environments where obstructions block signals.

The main challenge is to establish reliable communication links in non-line-of-sight conditions, such as forests, mountains, or urban canyons, where direct communication is difficult or impossible.

Troposcatter communications leverage the scattering of radio waves in the troposphere to provide a reliable method for long-range communication in non-line-of-sight scenarios.

By bouncing radio signals off the troposphere, troposcatter systems can overcome obstructions and achieve reliable communications over distances of up to hundreds of kilometers.

Forward Operating Base Connectivity

Forward Operating Bases (FOBs) are strategically located military outposts that require continuous and secure communication with command centers and other FOBs. These bases are often located in remote, rugged areas or dense vegetation, making traditional communication methods unreliable.

Establishing reliable and secure communication links between FOBs and command centers is crucial for effective coordination, situational awareness, and logistical support. However, the challenging terrain, distance, and lack of infrastructure pose significant challenges.

Troposcatter communications offer an effective solution to address the connectivity challenges faced by FOBs.

By utilizing the scattering of radio waves in the troposphere, troposcatter systems enable reliable long-range communication even in non-line-of-sight conditions. This technology allows FOBs to establish robust and secure communication links, facilitating seamless coordination, real-time intelligence sharing, and efficient logistical support in remote and challenging environments.

Critical Infrastructure Use Cases

Oil and Gas Pipeline Monitoring

Monitoring and controlling oil and gas pipelines is vital for ensuring efficient operations, detecting leaks, and preventing environmental disasters. However, pipelines often traverse remote areas with limited infrastructure and challenging environmental conditions.

Establishing continuous and reliable communication over long distances in remote areas is a significant challenge for oil and gas pipeline monitoring. The lack of existing communication infrastructure and the need for real-time data transmission add to the complexity.

Troposcatter communications offer a reliable and cost-effective solution for long-range communication in remote pipeline monitoring applications.

By utilizing tropospheric scattering, troposcatter systems can establish communication links over hundreds of kilometers without the need for intermediate relay stations or line-of-sight connections. This enables real-time data transmission and remote control, improving the efficiency and safety of pipeline operations.

Disaster Response and Recovery

During natural disasters or emergencies, communication is vital for effective response and recovery operations. Disasters often disrupt traditional communication infrastructure, leaving affected areas isolated and in need of reliable communication links.

Establishing communication networks quickly in disaster-stricken areas, where existing infrastructure may be damaged or destroyed, poses a significant challenge. Line-of-sight communication methods may not be feasible due to debris, structural damage, or limited power availability.

Troposcatter communications can provide a reliable alternative for establishing communication links in disaster response and recovery scenarios.

By leveraging tropospheric scattering, troposcatter systems can bypass damaged infrastructure and create long-range communication networks rapidly. This enables emergency responders to coordinate efforts, share information, and provide essential services in areas where traditional communication methods are disrupted.

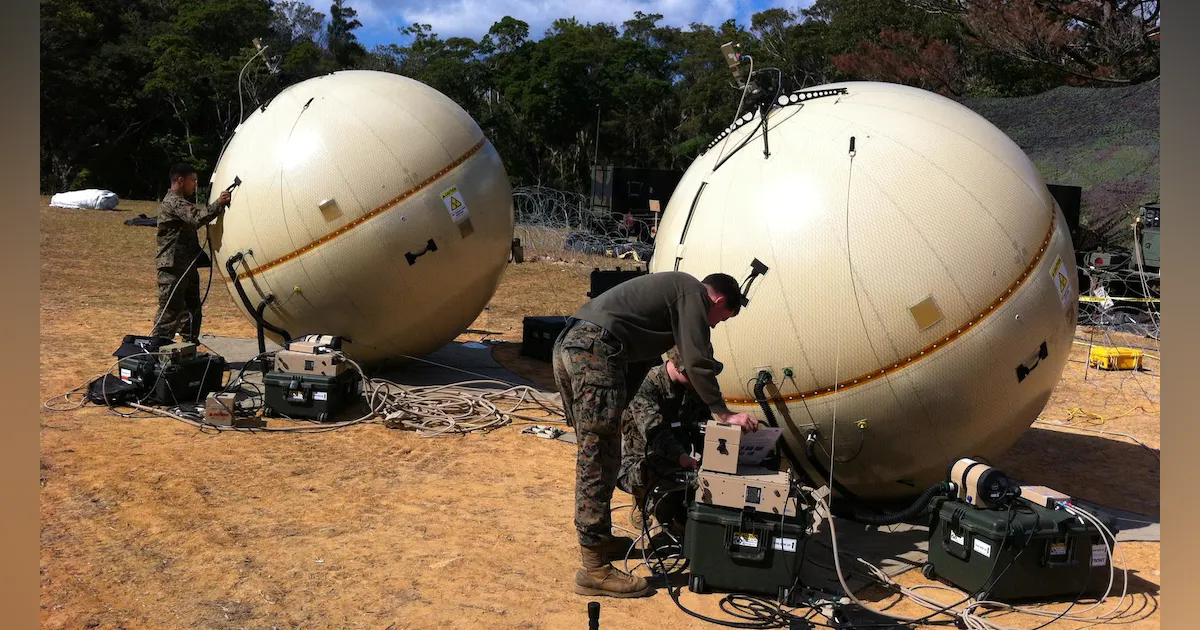

Troposcatter Comms Use Cases



Where does Trenton Systems come into play?

At Trenton Systems, our ruggedized, high-performance computing solutions provide the infrastructure necessary for troposcatter communication utilizing single or multiple pieces of hardware in the harshest of environments.

With high core count CPUs and high-end GPUs, our systems can process and analyze massive amounts of data from sensors, radars, and user devices in real-time at the tactical edge.

Data is then quickly stored and retrieved with high-speed DDR5 memory and FIPS 140-2/FIPS 140-3-certified self-encrypting drives to increase situational awareness and enhance bidirectional communication while thwarting the most sophisticated of cyberattacks.

Additionally, our systems can provide control and monitoring capabilities as well as network resource optimization to ensure maximum operational efficiency as data travels between two or more points.

Final thoughts

By utilizing the scattering of radio waves in the troposphere, troposcatter communication overcomes the limitations of traditional communication methods and provides reliable connectivity in challenging environments.

This technology finds significant applications in both military and civilian sectors, such as battlefield communication, forward operating base connectivity, oil and gas pipeline monitoring, and disaster response.

Companies like Trenton Systems empower troposcatter communication in the harshest of environments with enhanced computing, intelligence, and networking capabilities, contributing to effective and secure long-range communication.

Want to learn more about how we can help you craft a standard or custom solution for troposcatter communication? Just reach out to our team anytime here.

We’d be more than happy to help. 🙂
